SYB East Co Ltd

Plastic Processing Machinary

Model: SYB 2000MM
Special design to meet requirement of customer to machine holes
on plastic manholes of size 600mm to 2000mm. Hole size 100mm to 1000mm.


Model SYB 2000MM	Human machine interface	Control drives

360 degree rotating bed	Special clamp for manholes	Adjustable clamp 600 to 2000mm

Machining 100mm hole	Rotation after machining	Machining 800mm hole

800mm hole	Inserting inlet out let pipes	Plastic welding

X, Y, Z and A Movements

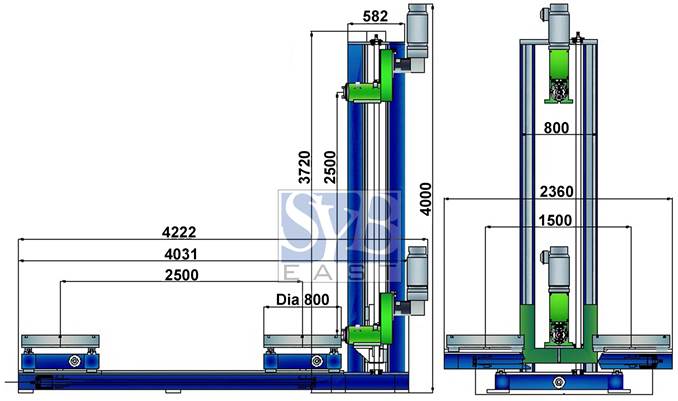

Overall Dimensions:

Specification

HDPE & PP Manhole machining center Model: SYB 2000MM
No	Item	Details
1.	CNC system	GSK GSK983M (three-axis 3 linkage), Four feed shafts plus and one servo-feed main shaft
		X-axis: 10N.M servo motor,
		Y-axis: 15N.M servo motor
		Z axis: 15N.M servo motor
		A-axis (Table rotation axis): 8N.M servo motor.
		Main shaft: 5.5KW servo motor, stepless speed regulation.
2.	Mechanical device	All Guides are used rolling guides and automatic lubrication system. With dust proof and ball lead screw drive/ transmission.
3	Automatic rotary working table	Hole cutting one time only without manually exchange the pipe direction.
		Table size 800 × 800mm
		Assistant working table size: ø2000mm
		Max. Clamping Dia. ø2000mm

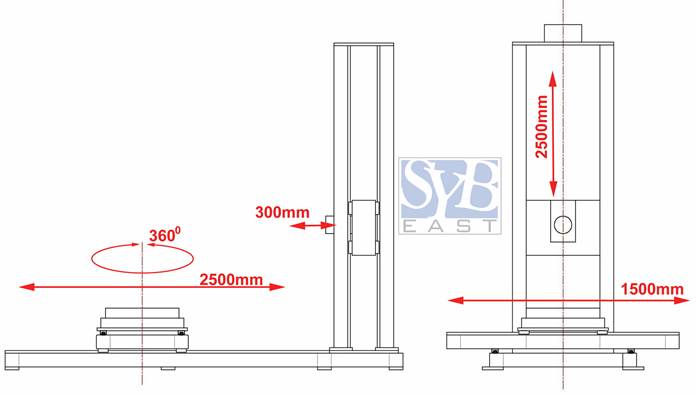

4.	Axis	X-axis (Horizontal moving axis): Max travel distance 1500mm.
		Z axis (Facing Main shaft axis) Max travel distance of 2500mm.
		Y axis (Vertical moving axis) Max travel distance of 2500mm, with power protect device (Brake device).
5.	Main shaft	Rotating Speed: 20-1500 rpm/min
		Tool shank taper: BT40, with Pneumatic clamping / release
		Tool adjustable distance: ø50-ø650mm
6.	Guides	Provide Guides protection and automatic intermittent screw lubrication pumps for continuous lubrication.

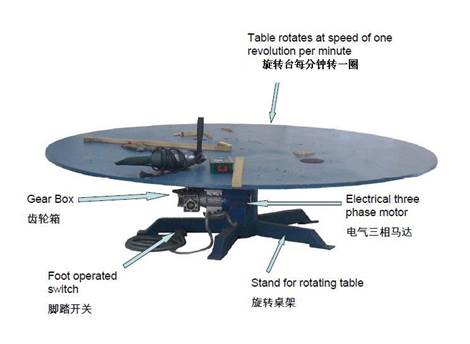

Turning Table for HDPE, PP & Plastic Manholes Welding
Model: SYB 2000RT

Specification

Item	Specifications
Table	Material: Carbon steel 45mm A3 Dia.: 2100mm
Motor	Variable-frequency motor, speed adjustable 0~5 rounds/ min Power: 0.37KW
Frequency Converter	Mitsubishi
Stand for table	Material: Carbon steel
Foot Operator switch	Accelerator type
Gear Box	NMRV040/090-500-YVPEJ0.37 Made in China,
Voltage	1￠，230V,50Hz；3￠，380V,50Hz
Max. Weight can bear	2 Tons
